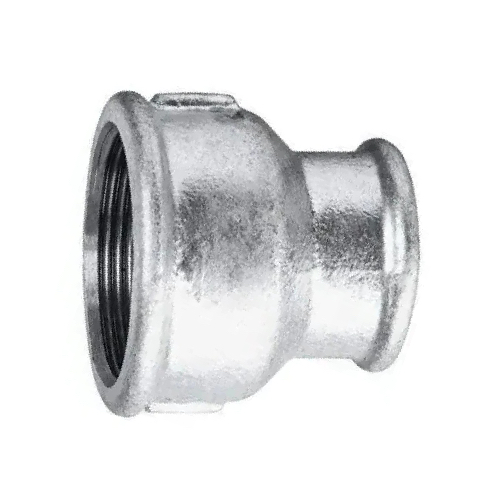

DN100 X 80 (4" X 3" NB) BSP GALVANISED MALLEABLE IRON REDUCING SOCKET
Fittings
Technical Specification
Product Code
MI-NB-BSP-SOC-RED-100-80-GAL
Size (Inch)
4"
Size (Inch)
3"
Outside Diameter (mm)
114.30mm
Weight
2.0 KG
Side 1 threaded: 4" BSPP Female
Suits 1 suits an outside diameter (OD) of: 114.3mm
Side 2 threaded: 3" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 88.9mm
Material: Malleable Iron
Finish: Galvanised
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 4", 3" |
| Outside Diameter (mm) | 114.30mm |
