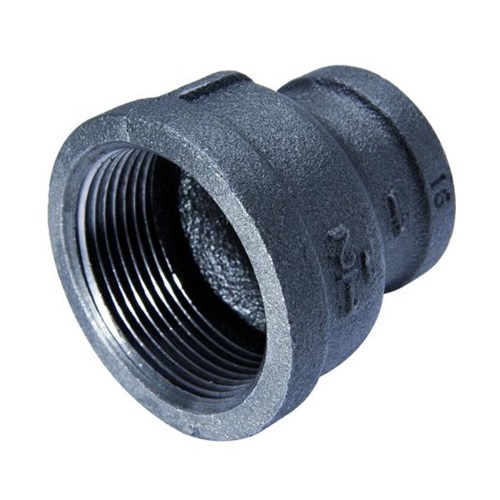

DN25 X 10 (1" X 3/8" NB) BSP BLACK MALLEABLE IRON REDUCING SOCKET
Fittings
Technical Specification
Product Code
MI-NB-BSP-SOC-RED-25-10-BLK
Size (Inch)
1"
Size (Inch)
3/8"
Outside Diameter (mm)
33.40mm
Weight
0.18 KG
Side 1 threaded: 1" BSPP Female
Side 1 suits an outside diameter (OD) of: 33.4mm
Side 2 threaded: 3/8" BSPP Female
Side 2 suits an outside diameter (OD) of: 17.15mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.
