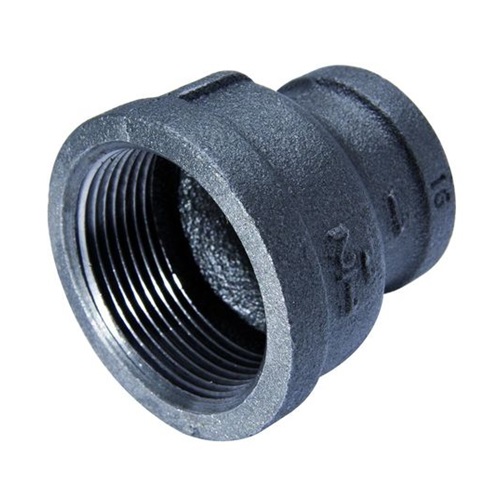

DN50 X 32 (2" X 1.1/4" NB) BSP BLACK MALLEABLE IRON REDUCING SOCKET
Fittings
Technical Specification
Product Code
MI-NB-BSP-SOC-RED-50-32-BLK
Size (Inch)
2"
Size (Inch)
1.1/4"
Outside Diameter (mm)
60.30mm
Weight
0.53 KG
Side 1 threaded: 2" BSPP Female
Suits 1 suits an outside diameter (OD) of: 60.3mm
Side 2 threaded: 1.1/4" BSPP Female
Side 2 suits suits an outside diameter (OD) of: 42.4mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Socket, Concentric, Coupling, Connector, Threaded, Screwed, Figure 240, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 2", 1.1/4" |
| Outside Diameter (mm) | 60.30mm |
