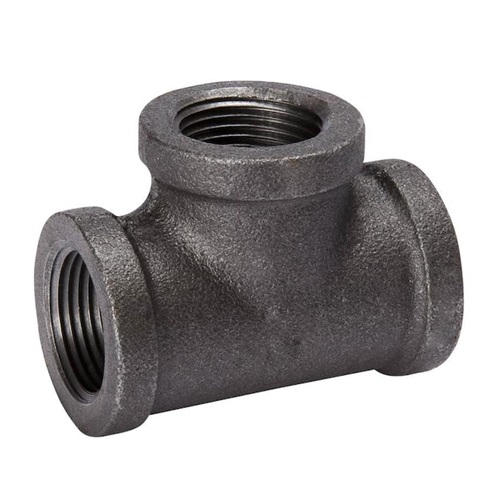

DN32 (1.1/4" NB) BSP BLACK MALLEABLE IRON EQUAL TEE
Fittings
Technical Specification
Product Code
MI-NB-BSP-TEE-32-BLK
Size (Inch)
1.1/4"
Outside Diameter (mm)
42.20mm
Weight
0.45 KG
All sides threaded: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Threaded, Screwed, Figure 130, Fittings.
