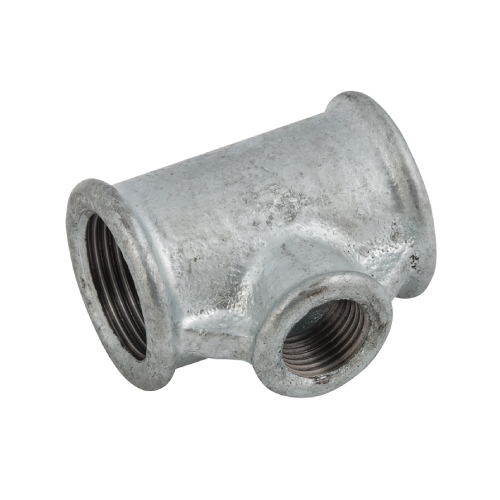

DN10 X 8 (3/8" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

DN10 X 8 (3/8" X 1/4" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

Technical Specification
Product Code
MI-NB-BSP-TEE-RB-10-8-GAL
Size (Inch)
3/8"
Size (Inch)
1/4"
Outside Diameter (mm)
17.10mm
https://www.processflow.co.uk/web/image/product.template/12695/image_1920?unique=ca03c16

£ 4.77 4.77 GBP £ 4.77 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Run threads: 3/8" BSPP Female
Suits an outside diameter (OD) of: 17.12mm
Branch Thread: 1/4" BSPP Female
Suits an outside diameter (OD) of: 13.72mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Product Code: MI-NB-BSP-TEE-RB-10-8-GAL


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 3/8", 1/4"
Outside Diameter (mm) 17.10mm
