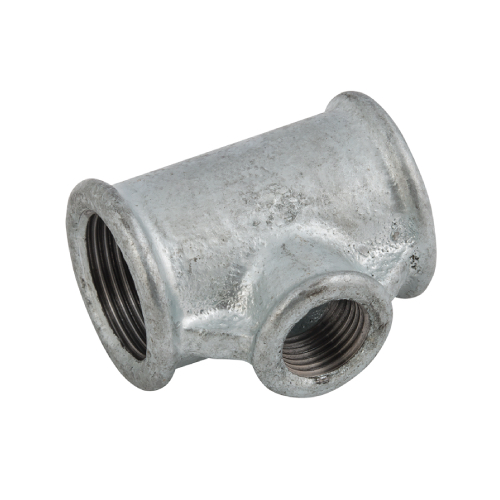

DN65 X 25 (2.1/2" X 1" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

DN65 X 25 (2.1/2" X 1" NB) BSP GALVANISED MALLEABLE IRON REDUCING BRANCH TEE

Technical Specification
Product Code
MI-NB-BSP-TEE-RB-65-25-GAL
Size (Inch)
2 1/2"
Size (Inch)
1"
Outside Diameter (mm)
73.00mm
https://www.processflow.co.uk/web/image/product.template/12901/image_1920?unique=d4da88c

£ 27.57 27.57 GBP £ 27.57 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Run threads: 2.1/2" BSPP Female
Suits an outside diameter (OD) of: 76.2mm
Branch Thread: 1" BSPP Female
Suits an outside diameter (OD) of: 33.4mm

Material: Malleable Iron
Finish: Hot Dip Galvanised (HDG)

Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1

Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.

Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 2 1/2", 1"
Outside Diameter (mm) 73.00mm
