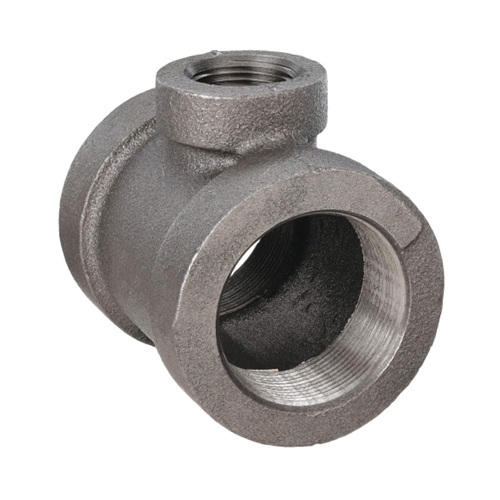

DN80 X 32 (3" X 1.1/4" NB) BSP BLACK MALLEABLE IRON REDUCING BRANCH TEE
Fittings
Technical Specification
Product Code
MI-NB-BSP-TEE-RB-80-32-BLK
Size (Inch)
3"
Size (Inch)
1.1/4"
Outside Diameter (mm)
88.90mm
Weight
0.3 KG
Run threads: 3" BSPP Female
Suits an outside diameter (OD) of: 88.9mm
Branch Thread: 1.1/4" BSPP Female
Suits an outside diameter (OD) of: 42.4mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Reducing Branch, Tee, Threaded, Screwed
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3", 1.1/4" |
| Outside Diameter (mm) | 88.90mm |
