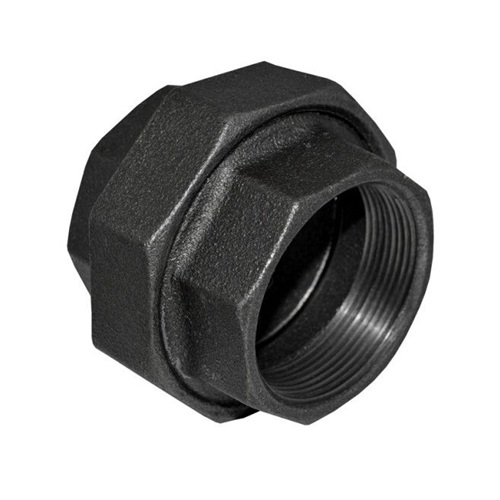

DN40 (1.1/2" NB) BSP BLACK MALLEABLE IRON FXF UNION
Technical Specification
Product Code
MI-NB-BSP-UNI-40-BLK
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
1.64 KG
Both sides threaded: 1.1/2" BSPP Female x Female
Suits an outside diameter (OD) of: 48.3mm
Material: Malleable Iron
Finish: Black Self Colour
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi, Malleable Iron, EN 10242 & EN 10226-1
Applications:
Heating and Plumbing, HVAC, Oil, Gas, Agricultural Irrigation, Fuel and Oils, Cooling, Marine, Fire Protection Sprinkler Systems.
Alternative terminology:
Malleable, Iron, Union, FXF, Threaded, Screwed, Figure 340, Fittings.
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1.1/2" |
| Outside Diameter (mm) | 48.30mm |
