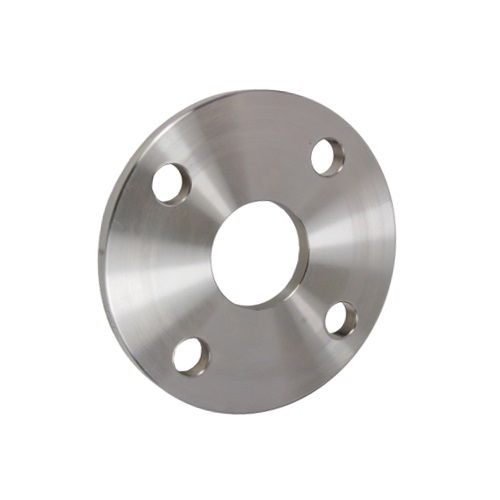

0.75" (DN20) PN16 (BORED 19.05mm / 0.75" OD OD) TABLE E THICK FF SLIP ON FLANGE SS 304/L
Suits an outside diameter (OD) of: 19.05mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M12 Bolts
PCD: 75mm
Flange Diameter: 105mm
Flange Thickness: 7.14mm
Inside diameter to suit 1" OD Hygienic / Dairy
Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.
Part of our Flanges and Flanged Connections Range
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3/4" |
| Outside Diameter (mm) | 26.70mm |
