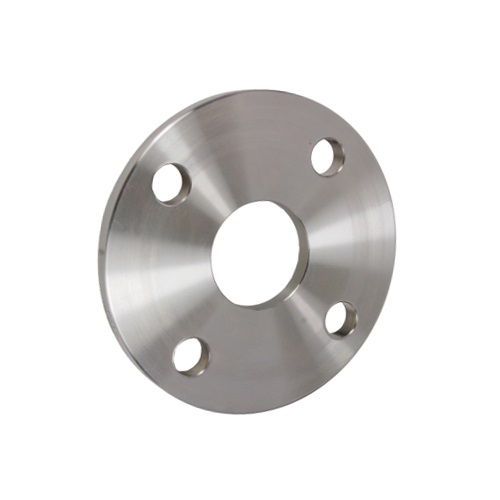

1.00" (DN25) PN16 (BORED 25.4mm / 1.00" OD OD) TABLE E THICK FF SLIP ON FLANGE SS 304/L

1.00" (DN25) PN16 (BORED 25.4mm / 1.00" OD OD) TABLE E THICK FF SLIP ON FLANGE SS 304/L

Flanges Hygeinic
Technical Specification
Product Code
SS-HYG-FLA-FF-SO-P16-25-25.4-E-304
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
0.5 KG
https://www.processflow.co.uk/web/image/product.template/23070/image_1920?unique=81a69bd

£ 14.04 14.04 GBP £ 14.04 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.50 KG per item
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanges Hygeinic
Suits an outside diameter (OD) of: 25.4mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 7.14mm
Inside diameter to suit 1" OD Hygienic / Dairy

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

Part of our Flanges and Flanged Connections Range

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1"
Outside Diameter (mm) 33.40mm
