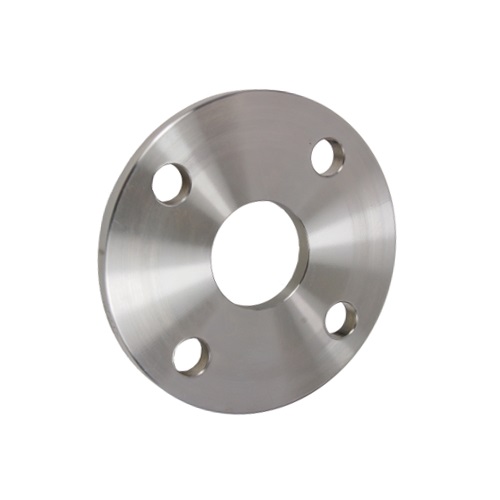

1.50" (DN40) PN16 (BORED 38.1mm / 1.1/2" OD HYGIENIC) TABLE E THICK FF SLIP ON FLANGE SS 316/L

1.50" (DN40) PN16 (BORED 38.1mm / 1.1/2" OD HYGIENIC) TABLE E THICK FF SLIP ON FLANGE SS 316/L

Flanges Hygeinic
Technical Specification
Product Code
SS-HYG-FLA-FF-SO-P16-40-38.1-E-316
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
1.1 KG
https://www.processflow.co.uk/web/image/product.template/23114/image_1920?unique=4047227

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.10 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flanges Hygeinic
Suits an outside diameter (OD) of: 38.1mm
Material: Stainless
Grade: 316/L
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 110mm
Flange Diameter: 150mm
Flange Thickness: 8.73mm (Table E)
Inside diameter to suit 1.1/2" OD Hygienic / Dairy

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

Part of our Flanges and Flanged Connections Range

Product Code: SS-HYG-FLA-FF-SO-P16-40-38.1-E-316


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
