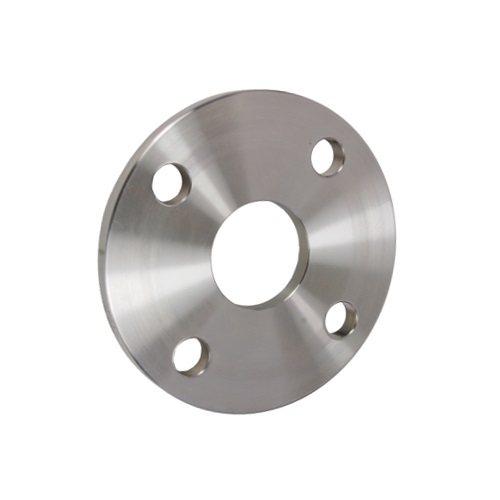

2.50" (DN65 - 4 HOLE) PN16 (BORED 63.5mm / 2.50" OD) TABLE E THK FF SLIP ON FLANGE SS 316

2.50" (DN65 - 4 HOLE) PN16 (BORED 63.5mm / 2.50" OD) TABLE E THK FF SLIP ON FLANGE SS 316

https://www.processflow.co.uk/web/image/product.template/6121/image_1920?unique=eeafc61

Suits an outside diameter (OD) of: 63.5mm
Material: Stainless
Grade: 316
Standards: EN1092-1
Flange Face: Flat
Bolt Holes: 4 off to suit M16 Bolts
PCD: 145mm
Flange Diameter: 185mm
Flange Thickness: 10.32mm (Table E)
Inside diameter to suit 2.1/2" OD Hygienic / Dairy Tube

Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.

Alternative terminology:
FF, SO, Flat Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Reduced Thick Flange. OD Flange.

£ 83.12 83.12 GBP £ 83.12 Tax Excluded

Not Available For Sale

(£ 83.12 / each)
Product details
Weight 1.30 KG per item
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Fittings Flanges Hygeinic
Product Code: SS-HYG-FLA-FF-SO-P16-65-63.5-E-316-4H


Contact Us

Terms and Conditions
Shipping: Usually Next day
(1 to 3 Days on 6 meter lengths)

Share

Specifications

Size (Inch) 2 1/2"
Outside Diameter (mm) 73.00mm
