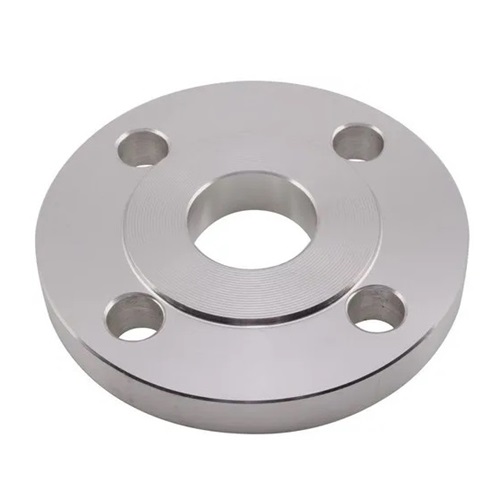

2.00" (DN50) PN16 (BORED 50.8mm / 2.00" OD) RF SLIP ON PLATE FLANGE SS 304
Fittings
Flanges
Hygeinic
Technical Specification
Product Code
SS-HYG-FLA-RF-SO-P16-50-50.8-FUL-304
Size (Inch)
2"
Outside Diameter (mm)
60.30mm
Weight
2.4 KG
Suits an outside diameter (OD) of: 50.8mm
Material: Stainless
Grade: 304
Standards: EN1092-1
Flange Face: Raised
Bolt Holes: 4 off to suit M12 Bolts
PCD: 85mm
Flange Diameter: 115mm
Flange Thickness: 18mm
Inside diameter to suit 2" OD Hygienic / Dairy Tube
Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
Alternative terminology:
RF, SO, Raised Face Flange, Slip on flange, Weld on Flange, Dairy Flange, Hygienic Flange, Sanitary Flange, Full Thick Plate Flange. OD Flange.
