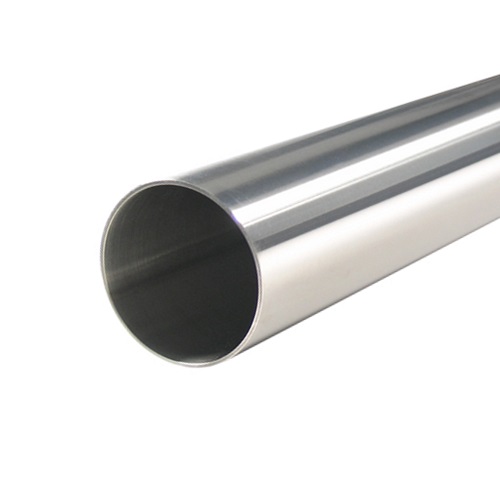

2.50" (2.1/2" OD) X 1.5mm WALL HYGIENIC PIPE 316/L SS
Pipes
Hygeinic
Technical Specification
Product Code
SS-HYG-PIP-63.5-1.5-316
Size (Inch)
2 1/2"
Outside Diameter (mm)
63.50mm
Weight
2.49 KG
Outside diameter: 2.1/2" (63.5mm)
Wall Thickness: 1.5mm
Material: Stainless
Grade: 316
Finish: Dull Polish 180 to 220 grit (Internal Ra less than 0.8µm)
Standards: Imperial Inch OD EN10357
Standard Length: 6 meters
Weight Per Meter: 2.49kg
Construction: Welded (un-annealed, Bead rolled, internal weld bead Ra less than 1.6µm.)
Note: Sold online only in 1 meter increments. Please get in touch for specific cutting requirements.
Applications:
Hygienic, Dairy & Sanitary - Dairy Processing, Brewing / Breweries / Beverage Production, Distilleries, Water Treatment, Waste Water, Chemicals, Bottling Plants, Medical & Pharmaceutical, Hospitals.
Alternative terminology:
Tube, Pipe, Length
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 2 1/2" |
| Outside Diameter (mm) | 63.50mm |
