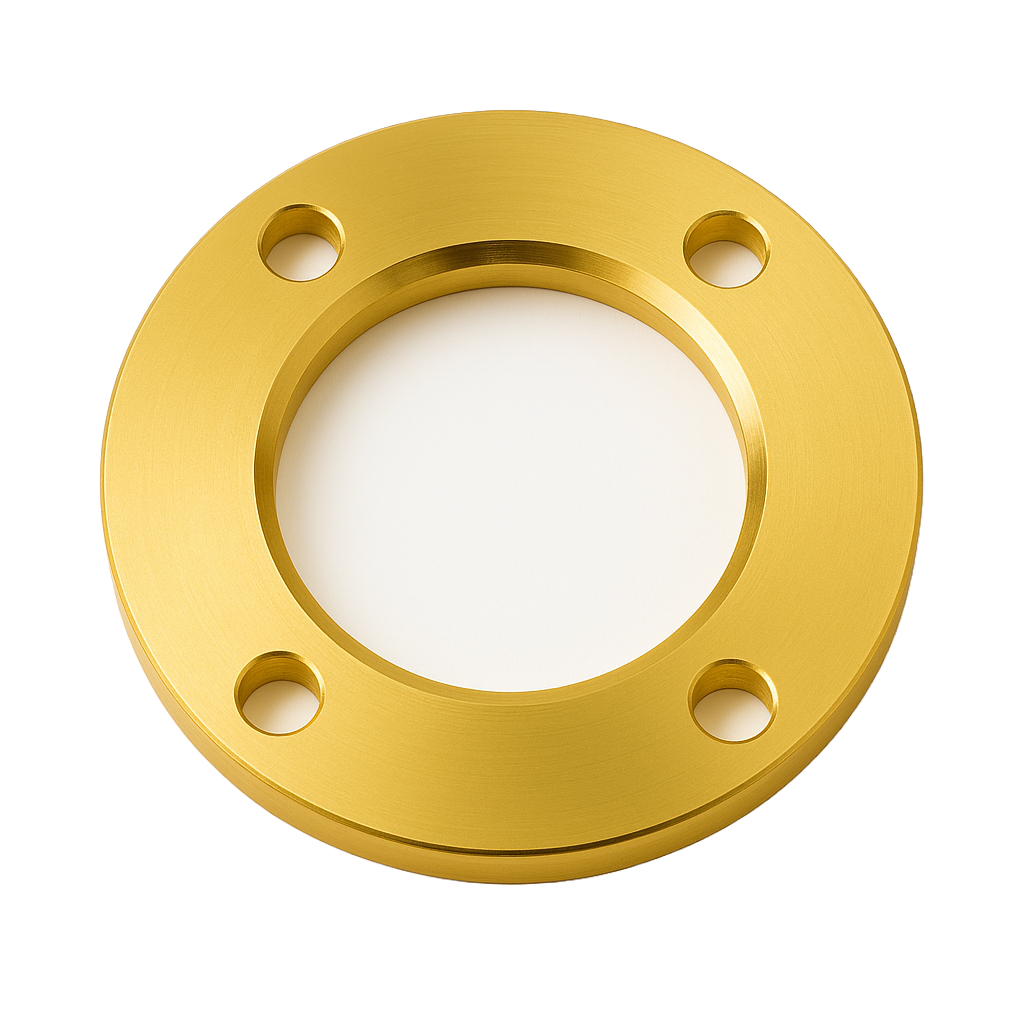

DN65 (2.1/2" NB) PN16 CHAMF. FF BACKING RING BORED 75mm ID 10mm THK MS BZP (4 HOLE)
Fittings
Technical Specification
Product Code
SS-MET-BRN-P16-65-69-BZP
Size (Inch)
2 1/2"
Outside Diameter (mm)
73.00mm
Weight
0.5 KG
Flange inside diameter of: 75mm (B1)
Flange overall diameter: 185mm (D)
PCD: 145mm (K)
Bolt Holes: 4 off 18mm diameter (L)
Flange Thickness: 10mm (C1)
Material: Mild Steel
Grade: S235 JR Zinc Plated (BZP)
Standards: EN1092-1
Flange Face: Flat Face
Certification Available: 3.1 BS EN 10204 Material Certification
