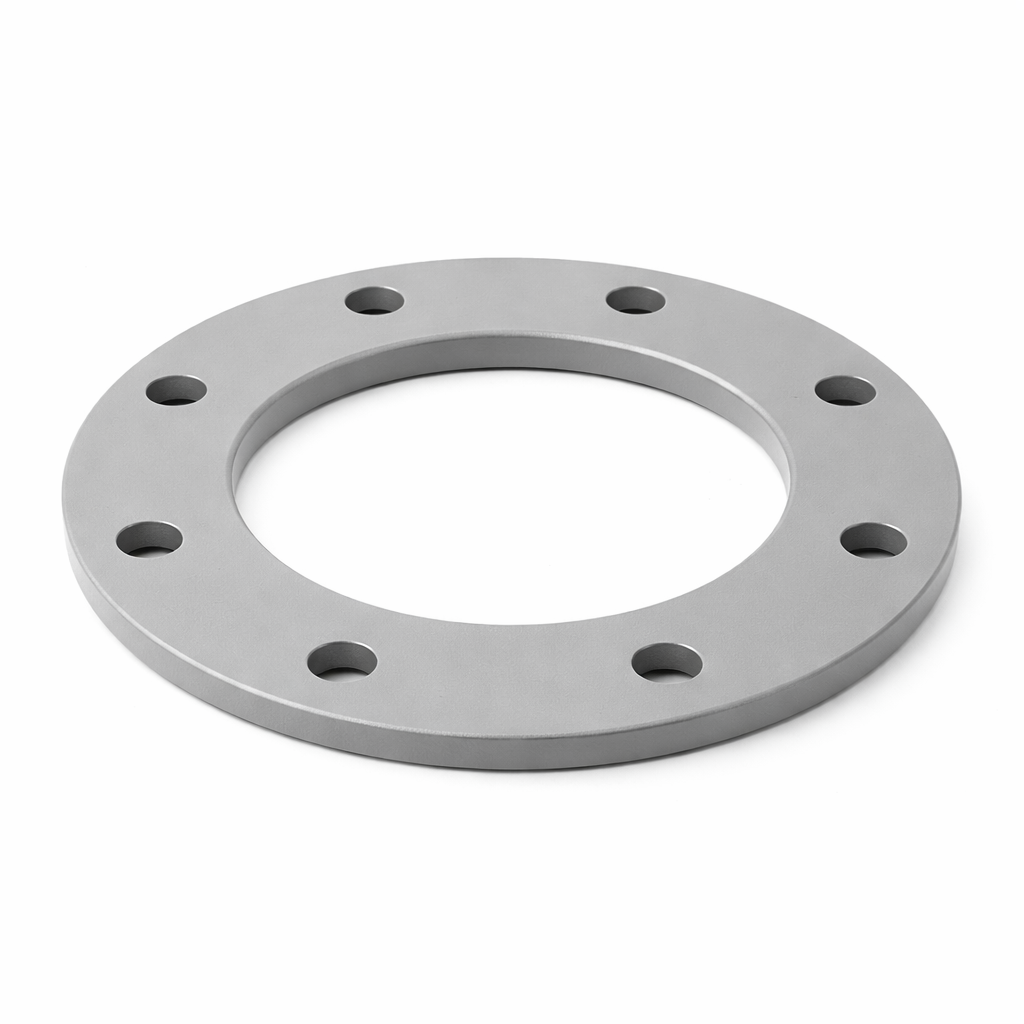

DN200 PN16 RED THICK (BORED 206MM) METRIC PPA GREY BACKING FLANGE

DN200 PN16 RED THICK (BORED 206MM) METRIC PPA GREY BACKING FLANGE

Technical Specification
Product Code
SS-MET-FLA-BF-PPA-P16-200-204
Outside Diameter (mm)
204.00mm
Weight
2.3 KG
https://www.processflow.co.uk/web/image/product.template/27641/image_1920?unique=81a69bd

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 2.30 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Suits an outside diameter (OD) of: 204mm

Material: MS

Coating: Grey PPA

Grade: S235 JR

Standards: EN1092-1

Flange Face: Flat

Bolt Holes: 8 off to suit M20 Bolts

PCD: 295mm

Flange Diameter: 340mm

Flange Thickness: 10mm

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 204.00mm
