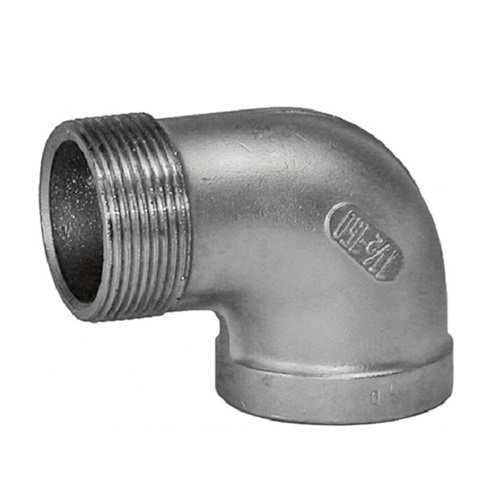

DN6 (1/8" NB) BSP 150# (MXF) ELBOW 90° SS 316
Fittings
Technical Specification
Product Code
SS-NB-BSP-150-ELB-MF-90-6-316
Size (Inch)
1/8"
Outside Diameter (mm)
10.30mm
Weight
0.2 KG
Side One Thread: 1/8" BSPT Male
Side Two Thread: 1/8" BSPP Female
Both Sides Suit an outside diameter (OD) of: 10.29mm
Male x Female Elbow, Also known as a 'Street Elbow '
Material: Stainless
Grade: 316
Standards:
Nominal Bore, Threaded, Screwed, Low Pressure, 150 psi
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1/8" |
| Outside Diameter (mm) | 10.30mm |
