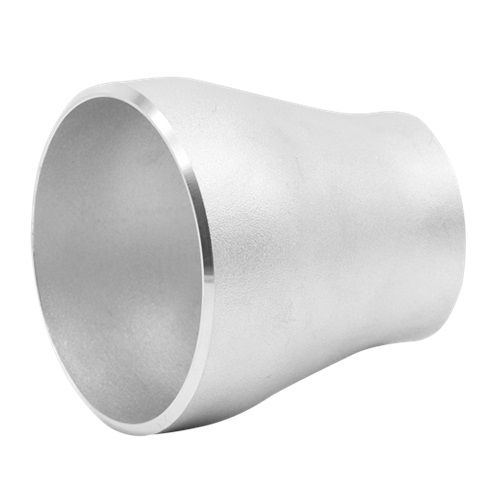

DN32 X DN25 (1¼" X 1" NB) SCHEDULE 40S A403 WELDED CONCENTRIC REDUCER SS 304
Technical Specification
Product Code
SS-NB-BW-CON-32x25-S40-WEL-304
Size (Inch)
1"
Outside Diameter (mm)
42.20mm
Outside Diameter (OD): 42 X 33mm
Wall Thickness: 3.56 X 3.38mm
End to End Length: 51mm
Schedule: Schedule 40s
Weight: 0.0kg
Material: Stainless Steel
Material Grade: ASTM A403 Grade 304
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Reducer, Concentric, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1" |
| Outside Diameter (mm) | 42.20mm |
