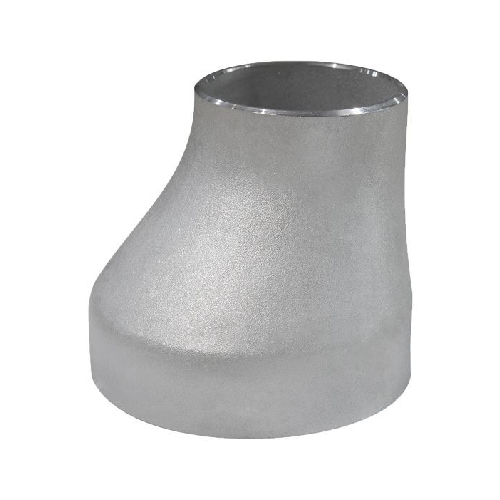

DN125 X DN65 (5" X 2½" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 316
Outside Diameter (OD): 141 X 73mm
Wall Thickness: 6.55 X 5.16mm
End to End Length: 127mm
Schedule: Schedule 40s
Weight: 2.51kg
Material: Stainless Steel
Material Grade: ASTM A403 Grade 316
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Reducer, Eccentric, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 5" |
| Outside Diameter (mm) | 141.30mm |
