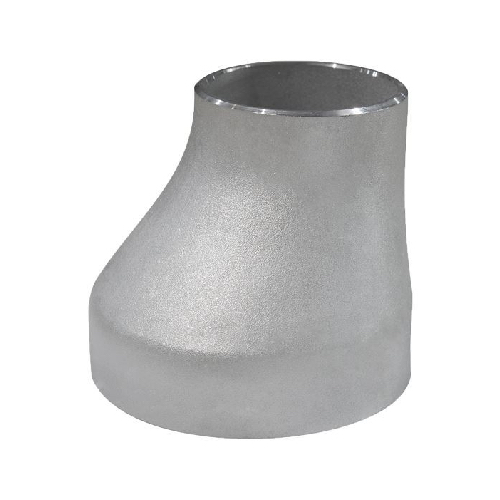

DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304

DN200 X DN100 (8" X 4" NB) SCHEDULE 40S A403 WELDED ECCENTRIC REDUCER SS 304

Technical Specification
Product Code
SS-NB-BW-ECC-200x100-S40-WEL-304
Size (Inch)
8"
Size (Inch)
4"
Outside Diameter (mm)
219.10mm
Weight
5.95 KG
https://www.processflow.co.uk/web/image/product.template/17740/image_1920?unique=91b310a

£ 288.00 288.0 GBP £ 288.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 5.95 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 219 X 114mm
Wall Thickness: 8.18 X 6.02mm
End to End Length: 152mm
Schedule: Schedule 40s
Weight: 5.95kg

Material: Stainless Steel
Material Grade: ASTM A403 Grade 304
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Reducer, Eccentric, Weldable

Product Code: SS-NB-BW-ECC-200x100-S40-WEL-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8", 4"
Outside Diameter (mm) 219.10mm
