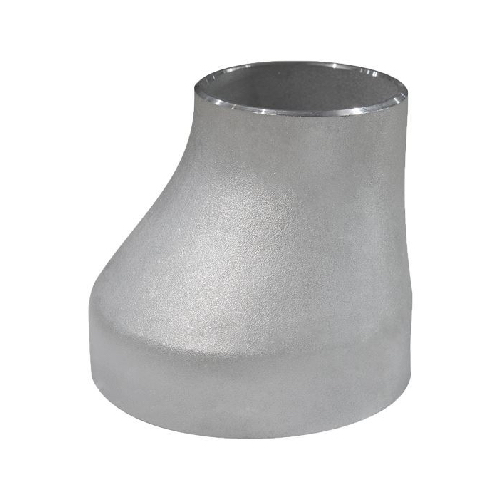

DN65 X DN32 (2½" X 1¼" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 316
Technical Specification
Product Code
SS-NB-BW-ECC-65x32-S40-SML-316
Outside Diameter (mm)
73.00mm
Weight
0.67 KG
Outside Diameter (OD): 73 X 42mm
Wall Thickness: 5.16 X 3.56mm
End to End Length: 89mm
Schedule: Schedule 40s
Weight: 0.67kg
Material: Stainless Steel
Material Grade: ASTM A403 Grade 316
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Reducer, Eccentric, Weldable
