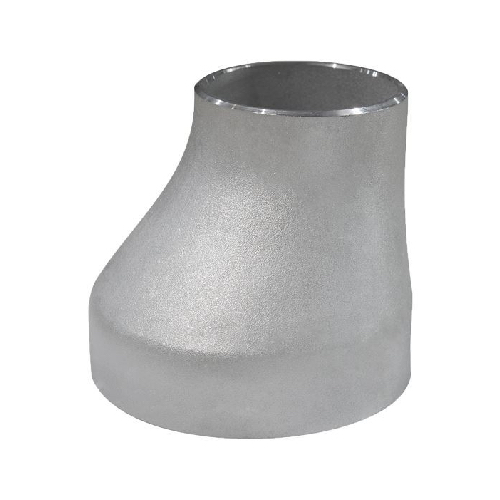

DN65 X DN40 (2½" X 1½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Technical Specification
Product Code
SS-NB-BW-ECC-65x40-S40-SML-304
Outside Diameter (mm)
73.00mm
Weight
0.68 KG
Outside Diameter (OD): 73 X 48mm
Wall Thickness: 5.16 X 3.68mm
End to End Length: 89mm
Schedule: Schedule 40s
Weight: 0.68kg
Material: Stainless Steel
Material Grade: ASTM A403 Grade 304
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Reducer, Eccentric, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 73.00mm |
