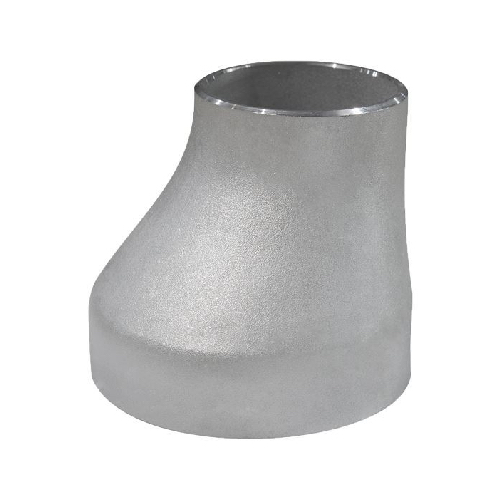

DN80 X DN65 (3" X 2½" NB) SCHEDULE 40S A403 SEAMLESS ECCENTRIC REDUCER SS 304
Technical Specification
Product Code
SS-NB-BW-ECC-80x65-S40-SML-304
Size (Inch)
3"
Outside Diameter (mm)
88.90mm
Weight
0.98 KG
Outside Diameter (OD): 89 X 73mm
Wall Thickness: 5.49 X 5.16mm
End to End Length: 89mm
Schedule: Schedule 40s
Weight: 0.98kg
Material: Stainless Steel
Material Grade: ASTM A403 Grade 304
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Reducer, Eccentric, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 3" |
| Outside Diameter (mm) | 88.90mm |
