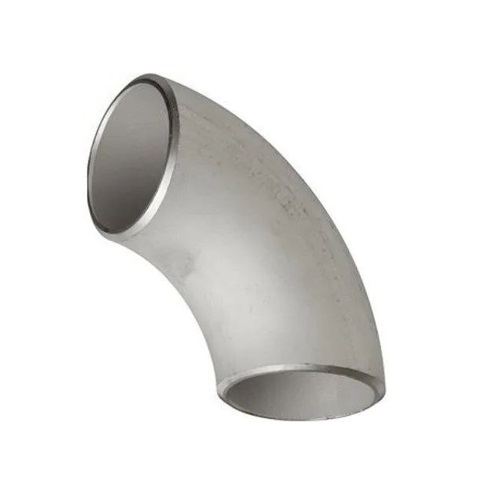

DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

DN25 (1" NB) SCHEDULE 40S A403 WELDED LONG RADIUS 90 DEG ELBOW SS 304

Technical Specification
Product Code
SS-NB-BW-ELB-90-25-S40-304-WEL
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
0.15 KG
https://www.processflow.co.uk/web/image/product.template/17076/image_1920?unique=91b310a

£ 5.46 5.46 GBP £ 5.46 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 0.15 KG per item
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside Diameter (OD): 33.4mm
Wall Thickness: 3.38mm
Centre to Face: 38.1mm
Schedule: A403 Welded
Weight: 0.15kg

Material: Stainless Steel
Material Grade: 304

Certification Available: 3.1 BS EN 10204 Material Certification

Alternative Terminology: Buttweld Elbow, Long Radius, 90°, LR, Bend, Weldable

Product Code: SS-NB-BW-ELB-90-25-S40-304-WEL


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1"
Outside Diameter (mm) 33.40mm
