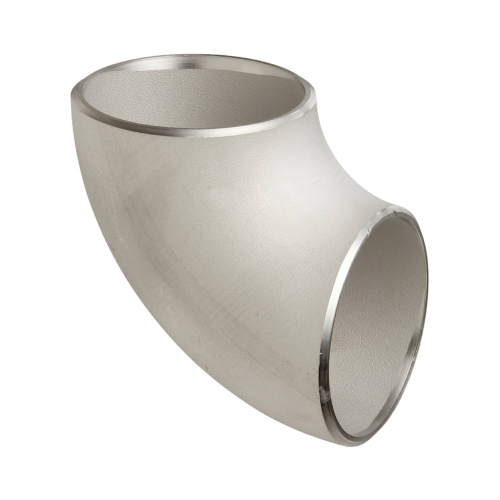

DN32 (1¼" NB) SCHEDULE 40S A403 WELDED SHORT RADIUS 90 DEG ELBOW SS 304
Technical Specification
Product Code
SS-NB-BW-ELB-90-SR-32-S40-304-WEL
Outside Diameter (mm)
42.20mm
Weight
0.17 KG
Outside Diameter (OD): 42.2mm
Wall Thickness: 3.56mm
Centre to Face: 31.75mm
Schedule: A403 Welded
Weight: 0.17kg
Material: Stainless Steel
Material Grade: 304
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Elbow, Short Radius, 90°, SR, Bend, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 42.20mm |
