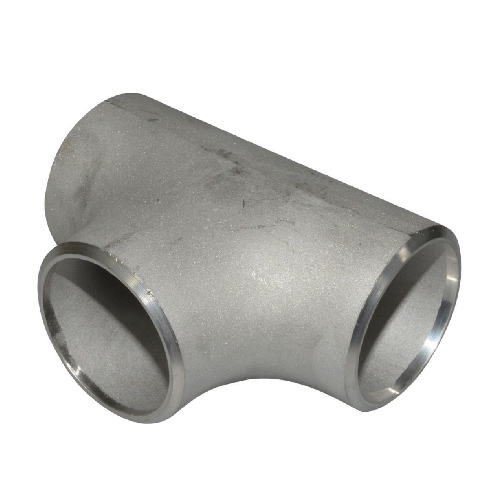

DN65 (2½" NB) SCHEDULE 40S A403 WELDED EQUAL TEE SS 304
Technical Specification
Product Code
SS-NB-BW-TEE-EQ-65-S40-WEL-SS 304
Outside Diameter (mm)
73.00mm
Weight
2.36 KG
Outside Diameter (OD): 73.0mm
Wall Thickness: 5.16mm
Centre to End: 76.2mm
Schedule: 40s
Weight: 2.36kg
Material: Stainless Steel
Material Grade: ASTM A403
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative Terminology: Buttweld Tee, Equal Tee, LR, Welding Tee, Weldable
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Outside Diameter (mm) | 73.00mm |
