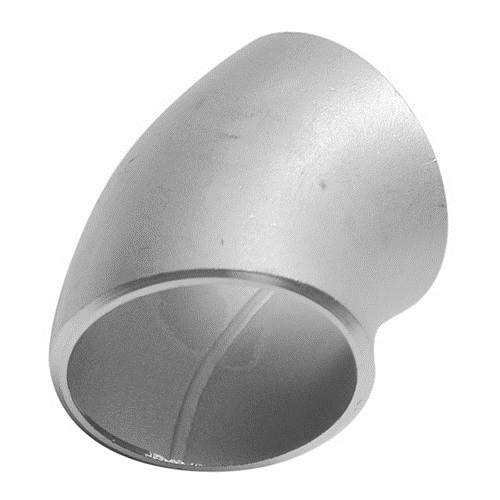

DN25 (1" NB) SCHEDULE 40s SEAMLESS ELBOW 45° SS 316
Fittings
Technical Specification
Product Code
SS-NB-ELB-45-S40-25-316S
Size (Inch)
1"
Outside Diameter (mm)
33.40mm
Weight
0.09 KG
Outside Diameter (OD): 33.4mm
Wall Thickness (WT): 3.91mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9
Radius: 1.5D
Angle: 45 Degree
Construction: Seamless
Certification Available: 3.1 BS EN 10204 Material Certification
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 1" |
| Outside Diameter (mm) | 33.40mm |
