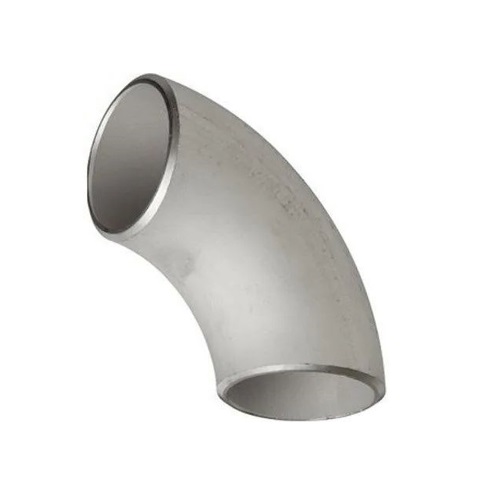

DN40 (1.1/2" NB) SCHEDULE 40s WELDED ELBOW 90° SS 316

DN40 (1.1/2" NB) SCHEDULE 40s WELDED ELBOW 90° SS 316

Fittings
Technical Specification
Product Code
SS-NB-ELB-90-S40-40-316W
Size (Inch)
1.1/2"
Outside Diameter (mm)
48.30mm
Weight
0.31 KG
https://www.processflow.co.uk/web/image/product.template/5881/image_1920?unique=9f8b7da

£ 13.11 13.11 GBP £ 13.11 Tax Excluded

Not Available For Sale

(£ 13.11 / each)
Product details
Weight 0.31 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Fittings

Outside Diameter (OD): 48.3mm
Wall Thickness (WT): 3.68mm
Material: Stainless
Grade: 316
Standards: ANSI B16.9, Schedule 40s
Radius Centre to Face: 57.1mm
Angle: 90 Degree
Ends: Buttweld
Construction: Welded
Certification Available: 3.1 BS EN 10204 Material Certification

Applications:
Water, Oil & Gas / Petrochem, Steam, Fuels, Condensate, HVAC, Marine, Water & Waste Water, Mining, Construction, Power Generation (Energy), Waste to Energy (ERF)

Alternative terminology:
Butt Weld, Weld Bends, Weld Elbow, Long Rad, 90s

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1.1/2"
Outside Diameter (mm) 48.30mm
