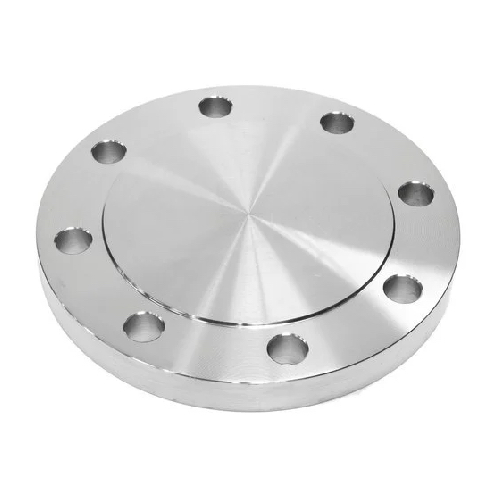

DN100 (4" NB) ASA300 RF BLIND FLANGE SS 316

DN100 (4" NB) ASA300 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-100-RF-BLA-300-316
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
11.8 KG
https://www.processflow.co.uk/web/image/product.template/18603/image_1920?unique=bb3896f

£ 322.11 322.11 GBP £ 322.11 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 11.80 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Pitch circle diameter (K): 200.1mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 157.2mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
