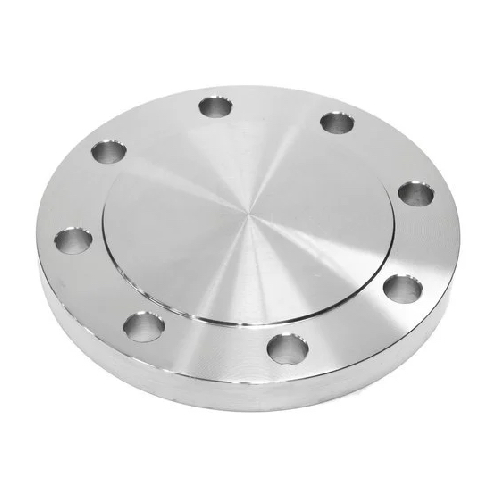

DN100 (4" NB) PN10 / PN16 RF BLIND FLANGE SS 316

DN100 (4" NB) PN10 / PN16 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-100-RF-BLA-P16-316
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
4.39 KG
https://www.processflow.co.uk/web/image/product.template/18499/image_1920?unique=ca03c16

£ 132.36 132.36 GBP £ 132.36 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 4.39 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 220mm
Drilling (No. x Bolt Hole x L): 8 x M16 x 18mm
Pitch circle diameter (K): 180mm
Flange thickness (C1): 22mm
Raised face diameter (D1): 148mm
Raised face height (F1): 3mm
Material: 316
Rating: PN16
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Product Code: SS-NB-FLA-100-RF-BLA-P16-316
