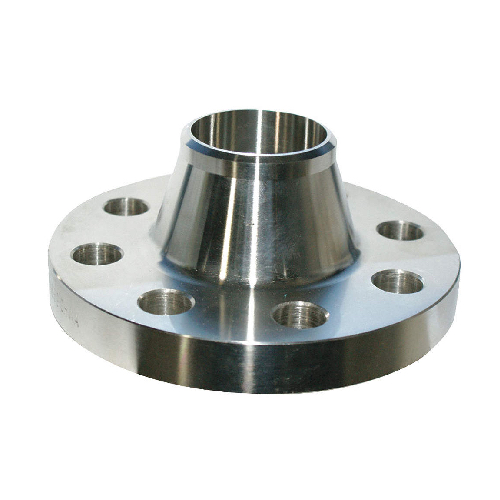

DN100 (4" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316

DN100 (4" NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-100-RF-WN-S80-300-316
Size (Inch)
4"
Outside Diameter (mm)
114.30mm
Weight
11.9 KG
https://www.processflow.co.uk/web/image/product.template/18404/image_1920?unique=ca03c16

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 11.90 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 254.0mm
Flange thickness (C): 31.7mm
Hub height (X): 146.0mm
Length through hub (A): 114.3mm
Bolt circle diameter (K): 203.2mm
Overall height (Y): 85.8mm
Raised face thickness (RF): 1.5mm
Bore (B): 157.2mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 11.9kg
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 4"
Outside Diameter (mm) 114.30mm
