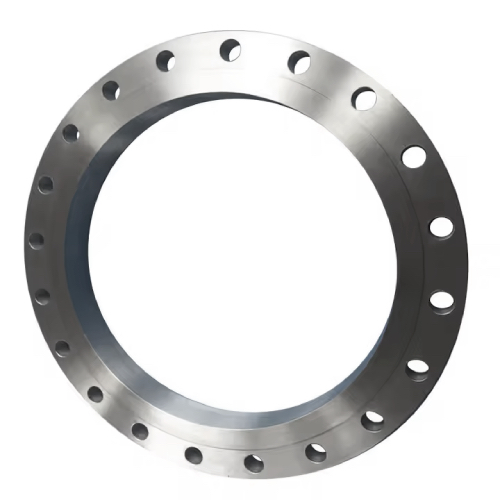

DN1000 PN10 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-1000-RF-SO-P10-316
Weight
169.62 KG
Flange inside diameter of: 1022.0mm (B1)
Flange overall diameter: 1230mm (D)
PCD: 1160mm (K)
Bolt Holes: 28 off 36mm diameter (L)
Flange Thickness: 70mm (C1)
Diameter of Raised Face (RF): 1080mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Flat Faced, FFSO
