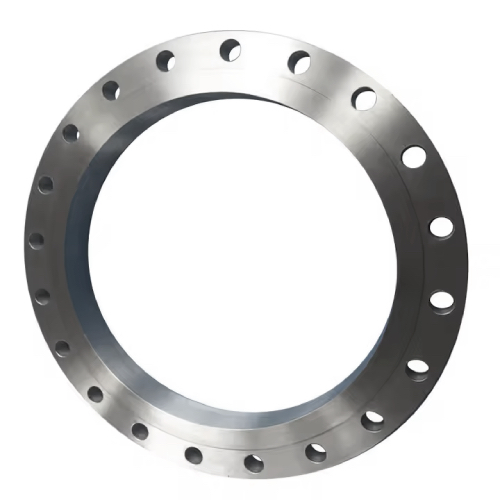

DN1200 (48" NB) PN6 RF SLIP ON PLATE FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-1200-RF-SO-P6-304
Weight
267.11 KG
Flange inside diameter of: 1226.0mm (B1)
Flange overall diameter: 1405mm (D)
PCD: 1340mm (K)
Bolt Holes: 32 off 33mm diameter (L)
Flange Thickness: 60mm (C1)
Diameter of Raised Face (RF): 1295mm (D1)
Height of raised face: 5mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
