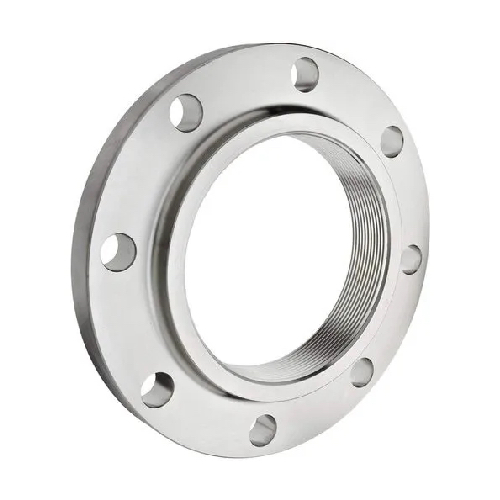

DN125 (5" NB) PN16 RF BSPP THREADED FLANGE SS 316

DN125 (5" NB) PN16 RF BSPP THREADED FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-125-RF-SCR-P16-SS-316
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
6.07 KG
https://www.processflow.co.uk/web/image/product.template/18244/image_1920?unique=335cd53

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 6.07 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 250mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 210mm (K)
Flange hub height: 40mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 5"
Bolt Holes: 8 off M16 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
