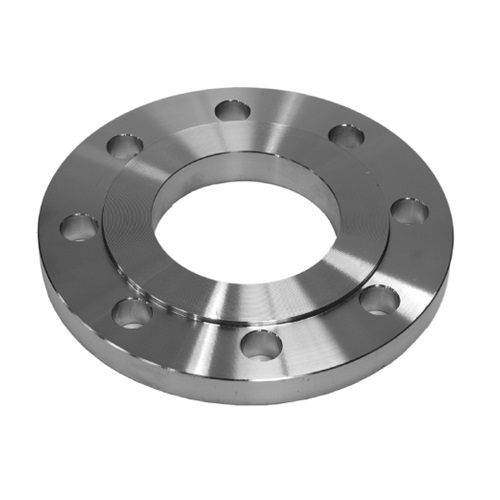

DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

DN125 (5" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Flange inside diameter of: 141.5mm (B1)
Flange overall diameter: 240mm (D)
PCD: 200mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 20mm (C1)
Diameter of Raised Face (RF): 178mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

  • Material
  • Grade
  • Outside Diameter (mm)
  • Nominal Size
  • Pressure Rating
  • Flange Face

Availability: Call for prices

Call for prices
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Specifications

Material Stainless Steel
Grade 304
Outside Diameter (mm) 141.30mm
Nominal Size DN125
Pressure Rating PN6
Flange Face Raised face (RF)
