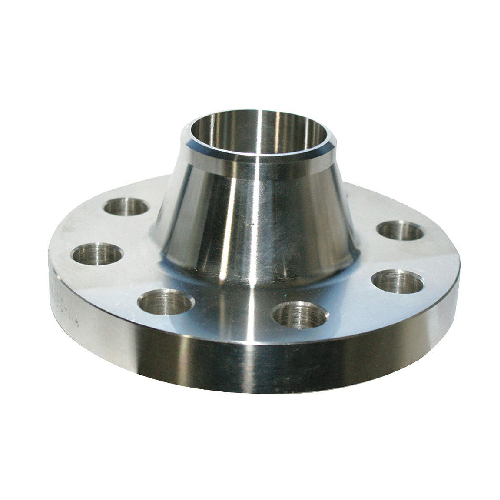

DN125 (5" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 304

DN125 (5" NB) SCHEDULE 10S ASA150 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-125-RF-WN-S10-A150-304
Size (Inch)
5"
Outside Diameter (mm)
141.30mm
Weight
14.0 KG
https://www.processflow.co.uk/web/image/product.template/18318/image_1920?unique=335cd53

£ 235.86 235.86 GBP £ 235.86 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 14.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 254.0mm
Flange thickness (C): 23.8mm
Hub length (X): 163.5mm
Neck height (A): 141.2mm
Pitch circle diameter (K): 215.9mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 185.6mm
Number of bolt holes: 8
Material: 304 Stainless Steel
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 5"
Outside Diameter (mm) 141.30mm
