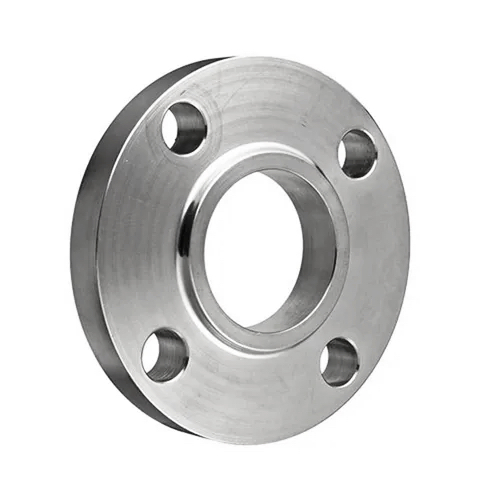

DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304

DN15 (1/2" NB) ASA1500 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-15-RF-SOB-ASA1500-304
Size (Inch)
1/2"
Outside Diameter (mm)
21.30mm
Weight
1.7 KG
https://www.processflow.co.uk/web/image/product.template/18049/image_1920?unique=335cd53

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 1.70 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 120.6mm (O)
Flange thickness: 22.3mm (C)
Flange hub height: 31.7mm (Y)
Pitch Circle Diameter (PCD): 82.5mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 4 off 22.3mm diameter
Bore Diameter: 22.3mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 1500LB, SOB

Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 1/2"
Outside Diameter (mm) 21.30mm
