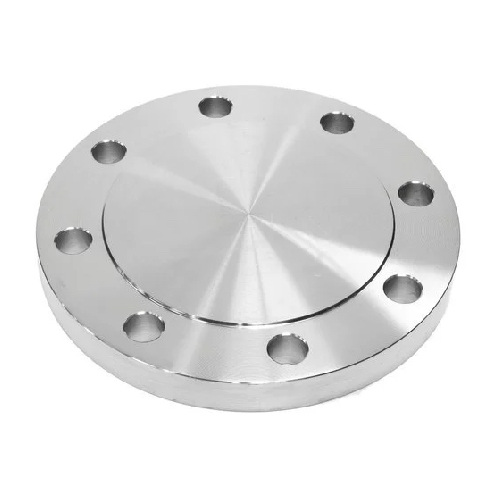

DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316

DN150 (6" NB) ASA150 RF BLIND FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-150-RF-BLA-150-316
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
11.8 KG
https://www.processflow.co.uk/web/image/product.template/18606/image_1920?unique=29d0392

£ 248.13 248.13 GBP £ 248.13 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 11.80 KG per item
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Pitch circle diameter (K): 241.3mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blind Flange, Blank, ASA150, Stainless Steel, Raised Faced
Product Code: SS-NB-FLA-150-RF-BLA-150-316
