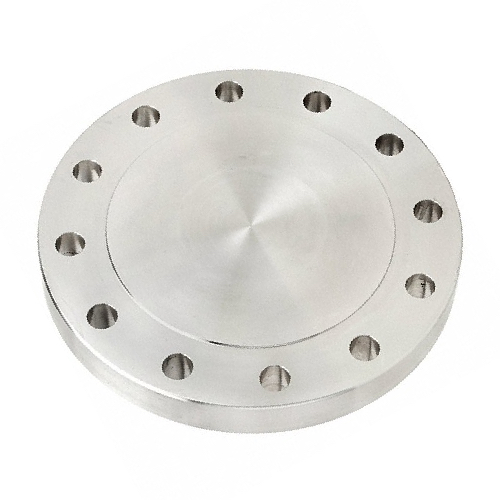

DN150 (6" NB) ASA300 RF BLIND FLANGE SS 316
Outside diameter (O): 317.4mm
Flange thickness (C): 36.5mm
Pitch circle diameter (K): 269.7mm
Raised face height (RF): 1.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 12
Material: Stainless Steel 316
Rating: ASA 300
Type: Blind flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 2.1 BS EN 10204 Material Certification
Alternative terminology:
Blind Flange, Blank, ASA300, Stainless Steel, Raised Faced
Your Dynamic Snippet will be displayed here...
This message is displayed because youy did not provide both a filter and a template to use.
Specifications
| Size (Inch) | 6" |
| Outside Diameter (mm) | 168.30mm |
