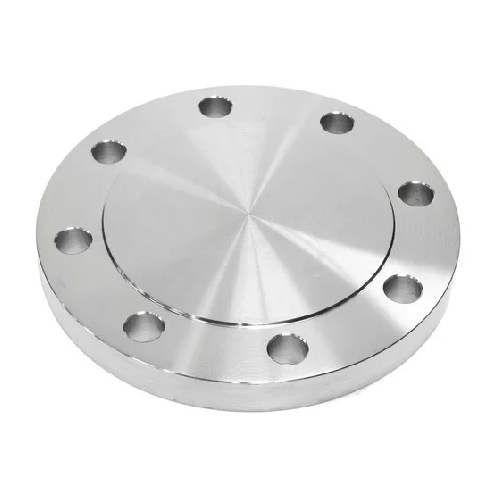

DN150 PN25 / PN40 RF BLIND FLANGE SS 304

DN150 PN25 / PN40 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-150-RF-BLA-P40-304
Outside Diameter (mm)
168.30mm
Weight
14.6 KG
https://www.processflow.co.uk/web/image/product.template/18438/image_1920?unique=8676e68

£ 219.48 219.48 GBP £ 219.48 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 14.60 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 300mm
Drilling (No. x Bolt Holes x L): 8 x M24 x 26mm
Pitch circle diameter (K): 250mm
Flange thickness (C4): 28mm
Material: 304
Rating: PN40
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 168.30mm
