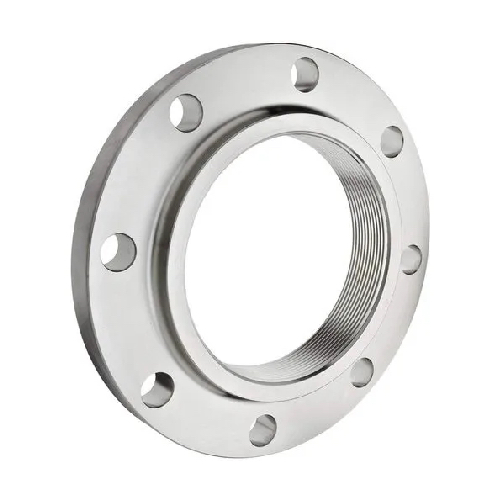

DN150 (6" NB) PN16 RF BSPP THREADED FLANGE SS 316

DN150 (6" NB) PN16 RF BSPP THREADED FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-150-RF-SCR-P16-SS-316
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
7.24 KG
https://www.processflow.co.uk/web/image/product.template/18246/image_1920?unique=29d0392

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 7.24 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 285mm (D)
Flange thickness: 22mm (C2)
Pitch Circle Diameter (PCD): 240mm (K)
Flange hub height: 44mm (H1)
Raised Face Height: 3mm (f1)
BSPP Thread: 6"
Bolt Holes: 8 off M20 bolts
Material: Stainless Steel
Grade: 316

Standards: EN 1092-1
Pressure Rating: PN16
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Threaded Flange, Screwed Flange, BSPP, Stainless Steel, SS Steel, Bossed, PN16

Product Code: SS-NB-FLA-150-RF-SCR-P16-SS-316


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
