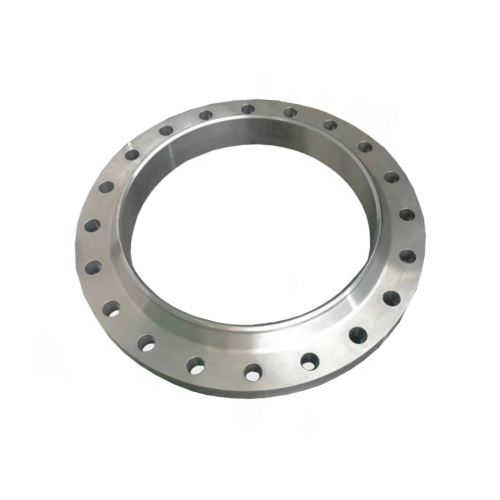

DN150 (6" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316

DN150 (6" NB) SCHEDULE 40S ASA300 WELD NECK FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-150-RF-WN-S40-300-316
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
20.2 KG
https://www.processflow.co.uk/web/image/product.template/18392/image_1920?unique=29d0392

£ 778.11 778.11 GBP £ 778.11 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 20.20 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 317.5mm
Flange thickness (C): 36.5mm
Hub height (X): 206.2mm
Length through hub (A): 168.4mm
Bolt circle diameter (K): 269.7mm
Overall height (Y): 108.0mm
Raised face thickness (RF): 1.5mm
Bore (B): 215.9mm
Number of bolt holes: 8
Bolt hole diameter: 22.3mm
Approx. weight: 20.2kg
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
