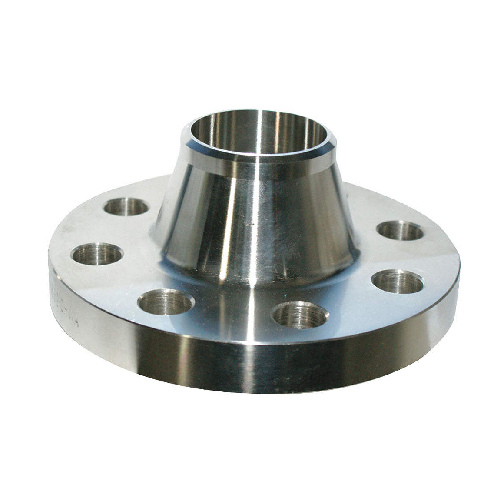

DN150 (6" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 316

DN150 (6" NB) SCHEDULE 80S ASA150 WELD NECK FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-150-RF-WN-S80-A150-316
Size (Inch)
6"
Outside Diameter (mm)
168.30mm
Weight
21.0 KG
https://www.processflow.co.uk/web/image/product.template/18296/image_1920?unique=29d0392

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 21.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 279.4mm
Flange thickness (C): 25.4mm
Hub length (X): 190.5mm
Neck height (A): 241.3mm
Pitch circle diameter (K): 241.3mm
Hub base diameter (Y): 88.9mm
Raised face height (RF): 15.5mm
Raised face diameter (R): 215.9mm
Number of bolt holes: 8
Material: Stainless Steel 316
Rating: ASA 150
Type: Weld Neck Flange (ASME B16.5)
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
WN Flange, Welding Neck, ASA150, Stainless Steel, RF
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 6"
Outside Diameter (mm) 168.30mm
