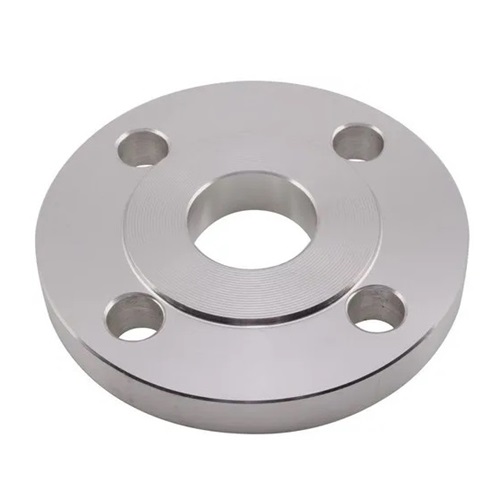

DN20 PN10/PN16/PN25/PN40 RF SLIP ON PLATE FLANGE SS 304
Technical Specification
Product Code
SS-NB-FLA-20-RF-SO-P10-P16-P40-304
Outside Diameter (mm)
26.70mm
Weight
0.93 KG
Flange inside diameter of: 27.5mm (B1)
Flange overall diameter: 105mm (D)
PCD: 75mm (K)
Bolt Holes: 4 off 14mm diameter (L)
Flange Thickness: 16mm (C1)
Diameter of Raised Face (RF): 50mm (D1)
Height of raised face: 2mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
