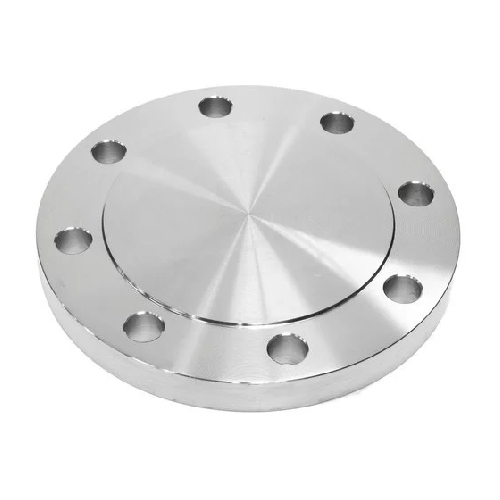

DN200 (8" NB) PN10 RF BLIND FLANGE SS 304

DN200 (8" NB) PN10 RF BLIND FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-200-RF-BLA-P10-304
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
9.27 KG
https://www.processflow.co.uk/web/image/product.template/18439/image_1920?unique=91b310a

£ 270.42 270.42 GBP £ 270.42 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 9.27 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange OD (D): 340mm
Drilling (No. x Bolt Holes x L): 8 x M20 x 22mm
Pitch circle diameter (K): 295mm
Flange thickness (C4): 24mm
Material: 304
Rating: PN10
Type: Blind flange (EN1092-1 Type 05)
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Blank Flange, Blind, Stainless Steel, Stainless Steel, Raised Faced, RF Blind
Product Code: SS-NB-FLA-200-RF-BLA-P10-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
