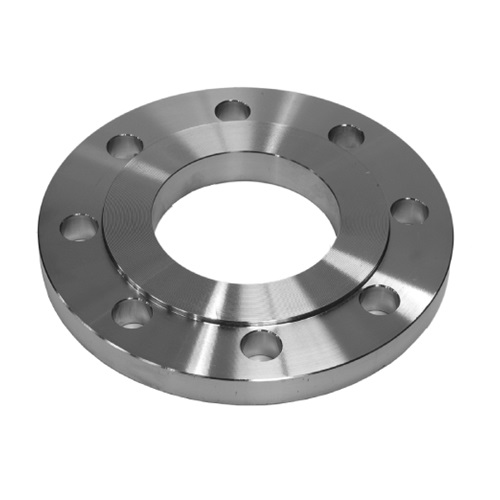

DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

DN200 (8" NB) PN6 RF SLIP ON PLATE FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-200-RF-SO-P6-304
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
8.67 KG
https://www.processflow.co.uk/web/image/product.template/17901/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 8.67 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange inside diameter of: 221.5mm (B1)
Flange overall diameter: 320mm (D)
PCD: 280mm (K)
Bolt Holes: 8 off 18mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 258mm (D1)
Height of raised face: 3mm (F1)
Material: Stainless Steel
Grade: 304
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Product Code: SS-NB-FLA-200-RF-SO-P6-304


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 8"
Outside Diameter (mm) 219.10mm
