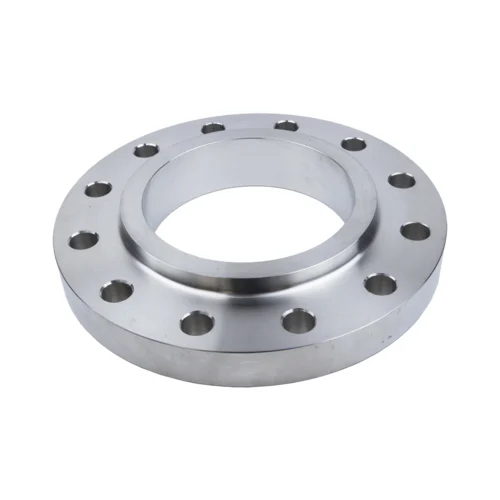

DN200 (8" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

DN200 (8" NB) ASA600 RF BOSSED SLIP ON FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-200-RF-SOB-ASA600-304
Size (Inch)
8"
Outside Diameter (mm)
219.10mm
Weight
43.0 KG
https://www.processflow.co.uk/web/image/product.template/18095/image_1920?unique=dae48f3

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 43.00 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange outside diameter: 419.1mm (O)
Flange thickness: 55.6mm (C)
Flange hub height: 76.2mm (Y)
Pitch Circle Diameter (PCD): 349.6mm (K)
Raised Face Height: 6.3mm (RF)
Bolt Holes: 12 off 31.7mm diameter
Bore Diameter: 221.4mm (B)
Material: Stainless Steel
Grade: 304
Standards: ASME B16.5
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Raised Faced, ASA 600LB, SOB
