  3. DN200 (8 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304
Website List 200 (PFC)

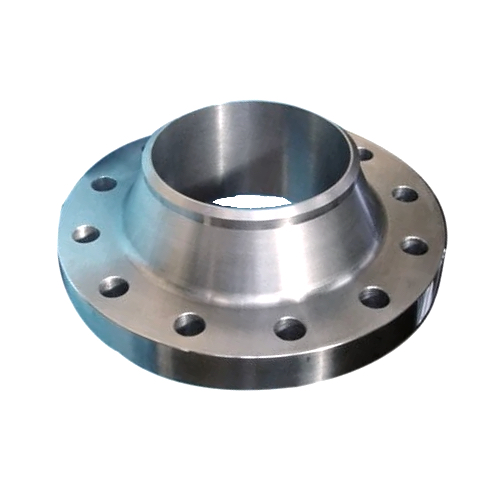

DN200 (8 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304

DN200 (8 NB) SCHEDULE 80S ASA300 WELD NECK FLANGE SS 304

Technical Specification
Product Code
SS-NB-FLA-200-RF-WN-S80-300-304
Outside Diameter (mm)
219.10mm
Weight
31.0 KG
https://www.processflow.co.uk/web/image/product.template/18348/image_1920?unique=dae48f3

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 31.00 KG per item
Available to order Sign up for trade prices
  • Outside Diameter (mm)

This combination does not exist.

Outside diameter (O): 381.0mm
Flange thickness (C): 41.1mm
Hub height (X): 260.3mm
Length through hub (A): 219.2mm
Bolt circle diameter (K): 304.8mm
Overall height (Y): 111.2mm
Raised face thickness (RF): 1.5mm
Bore (B): 269.7mm
Number of bolt holes: 12
Bolt hole diameter: 25.4mm
Approx. weight: 31.0kg
Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Outside Diameter (mm) 219.10mm
