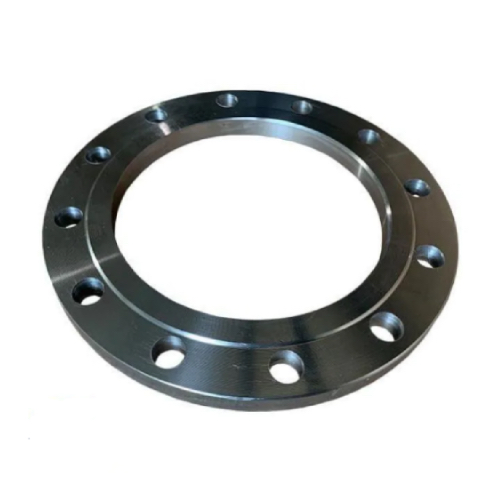

DN250 PN40 RF SLIP ON PLATE FLANGE SS 316
Technical Specification
Product Code
SS-NB-FLA-250-RF-SO-P40-316
Outside Diameter (mm)
273.00mm
Weight
29.3 KG
Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 450mm (D)
PCD: 385mm (K)
Bolt Holes: 12 off 33mm diameter (L)
Flange Thickness: 42mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification
Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO
