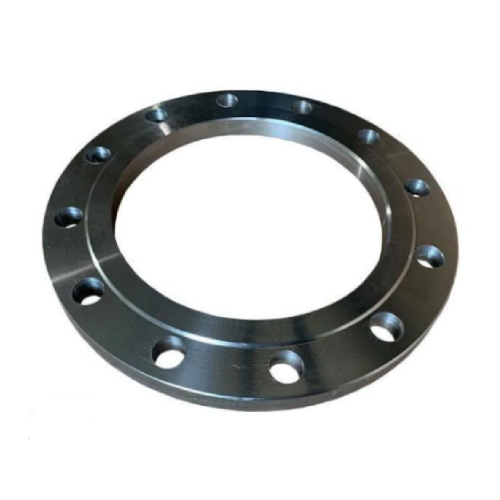

DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE SS 316

DN250 (10" NB) PN6 RF SLIP ON PLATE FLANGE SS 316

Technical Specification
Product Code
SS-NB-FLA-250-RF-SO-P6-316
Size (Inch)
10"
Outside Diameter (mm)
273.00mm
Weight
12.82 KG
https://www.processflow.co.uk/web/image/product.template/17999/image_1920?unique=91b310a

£ 0.00 0.0 GBP £ 0.00 Tax Excluded

Not Available For Sale

(£ 0.00 / each)
Product details
Weight 12.82 KG per item
Available to order Sign up for trade prices
  • Size (Inch)
  • Outside Diameter (mm)

This combination does not exist.

Flange inside diameter of: 276.5mm (B1)
Flange overall diameter: 375mm (D)
PCD: 335mm (K)
Bolt Holes: 12 off 22mm diameter (L)
Flange Thickness: 22mm (C1)
Diameter of Raised Face (RF): 312mm (D1)
Height of raised face: 4mm (F1)
Material: Stainless Steel
Grade: 316
Standards: EN1092-1
Flange Face: Raised Face
Certification Available: 3.1 BS EN 10204 Material Certification

Alternative terminology:
Slip on Flange, Weld on, Stainless Steel, Steel, Raised Faced, RFSO

Product Code: SS-NB-FLA-250-RF-SO-P6-316


Contact Us

Share

Please enter your details below to download our product datasheet.

Submit

Download Now Available

Specifications

Size (Inch) 10"
Outside Diameter (mm) 273.00mm
